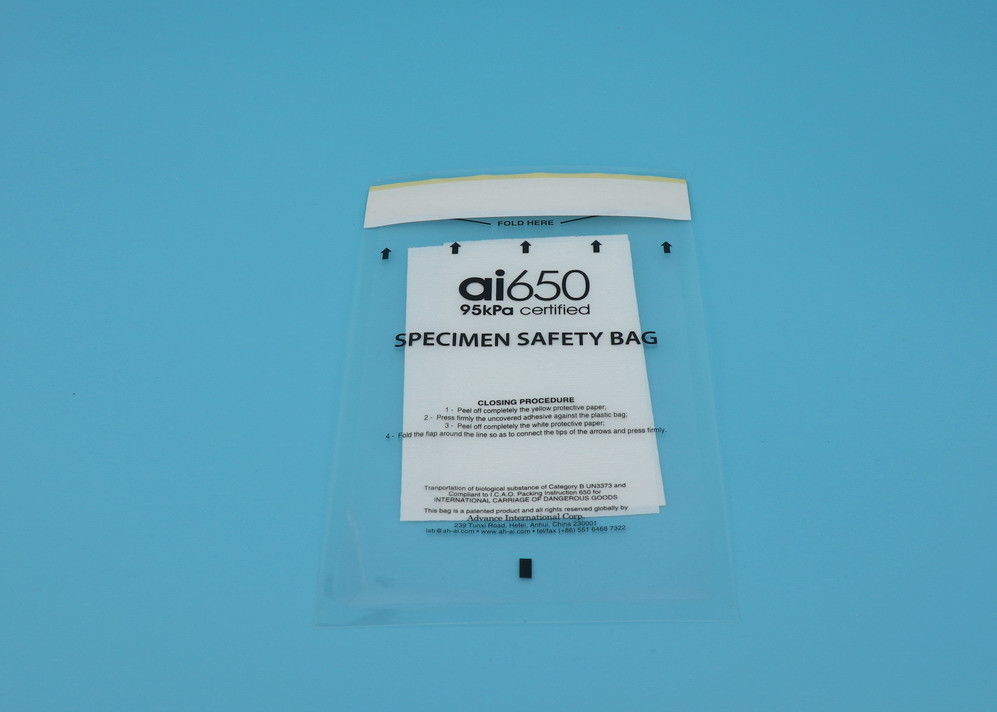

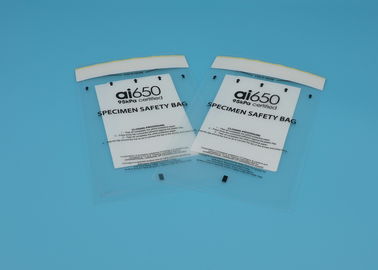

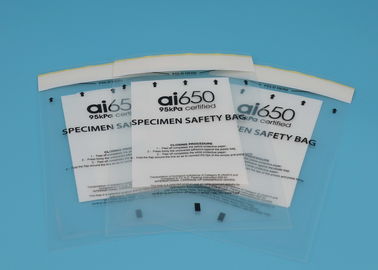

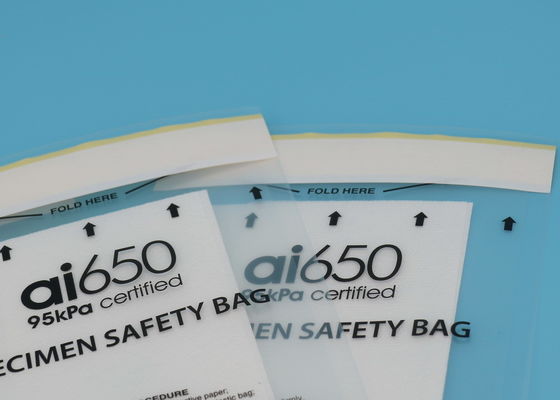

Disposable Security 95 Kpa Pressure Bags For Air Transport Specimens Packing

Customized Size 95 kPa Pressure Bags For Air transport Specimens packing



1. General Description

1) The ai650® 95kPa Biohazard Specimen Transportation Bag is a patented product of Advance International.

2) The bags were developed for carriage of dangerous or biohazard substances in conditions of the
inside/outside pressure differential of not less than 95kPa.

3) Each of the bag have a absorbent pocket sleeve inside which is capable of holding 7 cryogenic vials
and with a absorbency of minimum 200ml of distilled water.

4) These pressure bags are made with a custom film structure that features a strong adhesive closure
and continuous seal, which makes it ideal for critical liquid and substance containment.
5)The permanent adhesive closure withstands a temperature range of -40⁰C up to +55⁰C (-40⁰F up to +130⁰F).



2. Available sizes



	Size (I.D.: mm)	Size (I.D.: inch)	Qty per carton
Small	150mm x 240mm	6" x 9.5"	400 bags
Medium	250mm x 300mm	9.75" x 11.75"	200 bags
Large	300mm x 400mm	11.75" x 15.75"	200 bags
X-Large	350mm x 450mm	13.75" x 17.75"	100 bags



1) Our 95 kPa bags satisfy supplementary packaging requirements in the IATA DG Regulations (5.0.2.9.4).

These bags are designed to be used with inner packaging containing liquids that, in themselves, do no

comply with 95 kPa pressure requirements. When a 95 kPa bag is used in conjunction with each inner

packaging cont aining liquid, the assembled UN package is eligible to be transported by air (IATA DGR

packaging instructions must also be followed to ensure compliance). Our pressure bags also double

as a barrier between intermediate packaging (ie. vermiculite or other absorbent) and inner containers

in 4GV UN Boxes. Browse our various sizes belo When you need a shipping option that can withstand

temperature and pressure changes without leaking, then our 95kPa Pressure Bags may be the best

option. This bag is designed to withstand, without leakage, an internal pressure which produces a pressure

differential of not less than 95kPa. The patented VonSeal® liquid tight bag has passed the tests as outlined

in 173.196(f) of the DOT’s Title 49 CFR and as outlined in Packing Instructions 602 and 650 of the

2001-02 ICAO Technical Instructions for the Safe Transport of Dangerous Goods by Air.

2) Also the sealed bag with dangerous materials inside can withstands a temperate in between -40°C

and +55°C (or between -40°F and +131°F).Each of the bag have a absorbent pocket sleeve inside which

is capable of holding 7 cryogenic vials and with a absorbency of minimum 200ml of distilled water.The

bags can be produced in our brand name or ai650 ® or in OEM brands or customized labels of customers.

3)Take the guesswork out of packaging, protecting and shipping four inner containers of your hazmat

materials in one box with AI 650’s 4GV Packaging Kits. These UN-certified, Variation Two shippers are

suitable for shipping hazardous liquids or solids in Packing Groups I, II and III by any mode of transportation.

They can accommodate your own glass or plastic bottles which must pass hydrostatic pressure tests to

meet ISTA Procedure 1A when shipping by air. These kits include everything you need to protect your

containers’ internal contents, such as absorbent pouches, fiberboard insert, fiberboard pads, ties,

pressure-sensitive tape and a 4GV corrugated outer box. Available in two sizes, you can ship either

four 8-oz. or four 1L containers. Save yourself time and avoid packaging errors and compliance issues

when shipping four inner containers of hazardous materials by using one of these all-inclusive 4GV packaging kits.

4)It is suitable for transport packaging of pipes, bottles, containers or some samples with potential

infectious sources to the laboratory. This series of products received 95KPa pressure and leakage test

in the temperature range of -40 ° C to +50 ° C;





5)Specimen transport bags are liquid tight and tamper evident. The patented adhesive closure and

continuous seal meet or exceed standards of all major air carriers and DOT. Polyethylene construction

and adhesive closure provides added security during handling by personnel.

6)How to Close The Shipping Bag Properly

Specimen shipping bags in this carton are designed to perform at high internal pressure, should an

airliner lose its cabin pressure. So, in order for the bag to be effective and perform to its design capabilities,

the bag must be closed properly after insertion of the specimen





FQA

Q1. What is your terms of packing?

A: Generally, we pack our goods in cartons. If you have legally registered patent, we can pack the goods

in your branded boxes after getting your authorization letters.

Q2. Can i ask one pair samples before place order?

A:Yes we can produce by your samples,we can send you samples for free,but customer need to pay

courier cost by themselves.

Q3.How do you take care when your clients received defective products?

A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.

Q4.How do you check all the goods in the production line?

A: We have spot inspection and finished product inspection. We check the goods when they go into

next step production procedure.

Q5. How can I place order?

A: You can contact us by email about your order details, or place order on line.

Q6.How can I pay you?

A: After you confirm our PI, we will request you to pay. T/T and Paypal, Western Union are the most usual

ways we are using.

Q7.What’s the order procedure?

A: First we discuss order details, production details by email or TM. Then we issue you an PI for your

confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production.

After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the

items in stock. Before production has been finished, we will contact you for shipment details, and the

balance payment. After payment has been settled, we start to prepare the shipment for you.

Q8. How about your delivery time?

A: Generally, it will take 5 weeks after receiving your advance payment. The specific delivery time depends

on the items and the quantity of your order.

Q9. How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them,

no matter where they come from.
